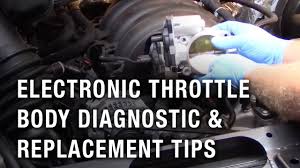

How To Test A Throttle Body - Resetting the throttle body calibration (this step is conditional) a rough idle or a ses can sometimes be caused by a change in the throttle body position sensor calibration.. This video goes over tips for diagnosing and replacing an electronic throttle body. The check engine light can indicate many issues within a car including a faulty throttle body. 5 the multimeter should show an increasing voltage as you (or your helper) open up the throttle plate. When you step on or step off the accelerator pedal, the throttle actuator control (tac) module translates the exact amount into a signal that opens the throttle. Throttle position sensor (tps) 1, throttle position sensor (tps) 2, and the throttle actuator motor.

Your f150's throttle body controls the amount of air that enters the engine. Reach underneath the steering wheel, and open up the obd connection panel. The multimeter will display around 5 volts if the tps is working correctly. Testing and troubleshooting the throttle position sensor (tps) on your ford or lincoln car, pick up or suv is an easy thing to do. Because of these 3 components, the throttle body's electrical connector has a total of 8 wires coming out of it.

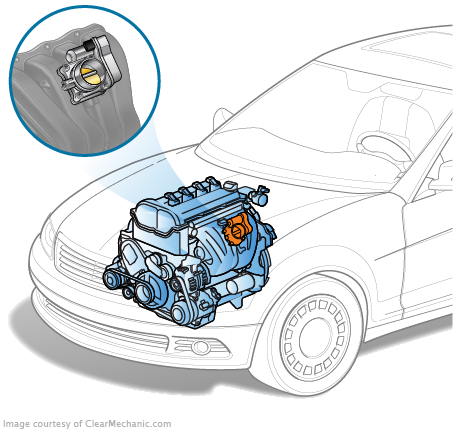

Symptoms Of A Bad Or Failing Throttle Body Yourmechanic Advice from res.cloudinary.com

For our first test we're going to test the resistance of terminal c and terminal g of tps 1. Test signal voltage of throttle the signal wire may be green, blue, or white on some throttles. Testing the throttle position sensors within the electronic throttle body simply involves testing the resistance between two terminals. Locate the tps attached on the side of your throttle body, in case your tps is connected to your reference voltage. Throttle position sensor (tps) 1, throttle position sensor (tps) 2, and the throttle actuator motor. Electronic throttle body terminal pin out chart. In case you're wondering, the tps test consist of making sure the sensor is creating a throttle angle voltage signal, and that it's getting power and ground. The check engine light can indicate many issues within a car including a faulty throttle body.

To correct any accidental changes in throttle body calibration, use these procedures to recalibrate.

Your f150's throttle body controls the amount of air that enters the engine. The throttle body is commonly situated between the intake manifold and air filter. For our first test we're going to test the resistance of terminal c and terminal g of tps 1. To go into a bit more detail: 5 the multimeter should show an increasing voltage as you (or your helper) open up the throttle plate. Vergleiche preise für 4e0145950j throttle und finde den besten preis. How do you test a throttle body with a multimeter? The electronic throttle body is made up of 3 electrical components. In more modern cars, an electronic throttle control (etc) constantly monitors throttle body performance. Manually rotate the throttle plate. The trouble codes that are stored in the computer can tell a lot about what is actually going on. The multimeter will display around 5 volts if the tps is working correctly. As you can see, there are cables running to and from the sensor to complete the sensor's circuit.

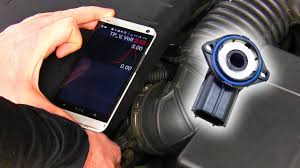

Locate the tps attached on the side of your throttle body, in case your tps is connected to your reference voltage. Many different components, including the throttle body system, work together to provide the engine with smooth acceleration.if you're concerned with the throttle body or are experiencing acceleration and idling issues, review these throttle body symptoms to determine whether your vehicle needs a new throttle. How to test tps 1, tps 2, and the throttle actuator control motor of the electronic throttle body.the exact same throttle body is used on the following vehic. How to test a throttle position sensor. If the throttle has red, blue, and green wires then the blue wire is ground.

6 Symptoms Of A Bad Throttle Position Sensor Replacement Cost In 2021 from oards.com

Wacky voltages cause whacky problems. Check the resistance in various accelerator pedal positions, record the resistance and compare against values listed as acceptable. The cars are rolling computers. You control the throttle body position with the gas pedal. The check engine light can indicate many issues within a car including a faulty throttle body. The other method is to use an adapter between the throttle body assembly and the pressure line. Testing and troubleshooting the throttle position sensor (tps) on your ford or lincoln car, pick up or suv is an easy thing to do. Check the wiring at the throttle body.

You don't even need a scan tool to test it.

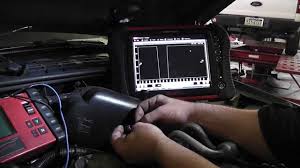

Any problem detected with it will turn on the check engine light. As soon as the car's onboard computer detects a problem with the throttle body signal, it will cause the check engine light to illuminate. Because of these 3 components, the throttle body's electrical connector has a total of 8 wires coming out of it. How do you test a throttle body with a multimeter? The check engine light is one of the most common symptoms of a bad throttle body in your equinox. You don't even need a scan tool to test it. Super angebote für 4e0145950j throttle hier im preisvergleich. You can use a standard ohm meter to test a switch and combination type throttle position sensor and a volt meter to test a throttle position sensor that uses a potentiometer. You then connect your fuel pressure test gauge to this adapter. Grab your multimeter and select volts dc mode. Allow the scanner to read the car computer and confirm whether the problem lies with the throttle body sensor. 5 the multimeter should show an increasing voltage as you (or your helper) open up the throttle plate. If the throttle has red, blue, and green wires then the blue wire is ground.

The throttle body itself is a tubular component of an air intake system which responds to the pressing of the gas pedal. As you can see, there are cables running to and from the sensor to complete the sensor's circuit. Testing and troubleshooting the throttle position sensor (tps) on your ford or lincoln car, pick up or suv is an easy thing to do. You control the throttle body position with the gas pedal. For our first test we're going to test the resistance of terminal c and terminal g of tps 1.

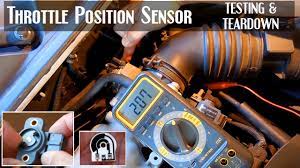

How To Test A Toyota Camry Tps Sensor My Pro Street from my.prostreetonline.com

A simple multimeter will suffice and in this article i'll take you thru' the whole diagnostic process step by step. Because of these 3 components, the throttle body's electrical connector has a total of 8 wires coming out of it. Check the resistance in various accelerator pedal positions, record the resistance and compare against values listed as acceptable. Vergleiche preise für 4e0145950j throttle und finde den besten preis. You'll get the best results by opening and closing the throttle plate directly on the throttle body instead of stepping on the accelerator pedal. In this video i will explain how a (tps) throttle position sensor works, how. Many different components, including the throttle body system, work together to provide the engine with smooth acceleration.if you're concerned with the throttle body or are experiencing acceleration and idling issues, review these throttle body symptoms to determine whether your vehicle needs a new throttle. These procedures are a little tricky to do.

The largest component of the throttle body, which regulates the airflow, is the throttle plate.

How to test tps 1, tps 2, and the throttle actuator control motor of the electronic throttle body.the exact same throttle body is used on the following vehic. Locate the tps attached on the side of your throttle body, in case your tps is connected to your reference voltage. Wacky voltages cause whacky problems. The throttle position sensor, on your 2.4l quad 4 engine, has to. Resetting the throttle body calibration (this step is conditional) a rough idle or a ses can sometimes be caused by a change in the throttle body position sensor calibration. You'll get the best results by opening and closing the throttle plate directly on the throttle body instead of stepping on the accelerator pedal. Vergleiche preise für 4e0145950j throttle und finde den besten preis. If your vehicle is having engine issues, it can be difficult to find the culprit. Many different components, including the throttle body system, work together to provide the engine with smooth acceleration.if you're concerned with the throttle body or are experiencing acceleration and idling issues, review these throttle body symptoms to determine whether your vehicle needs a new throttle. The throttle position sensor test is a multimeter test, so you don't need a scan tool. One method involves removing the fuel filter and using an adapter, that has a schrader valve on it, in its place. The electronic throttle body is made up of 3 electrical components. You then connect your fuel pressure test gauge to this adapter.

The check engine light can indicate many issues within a car including a faulty throttle body how to test throttle body. Terminal c is the terminal that receives ground from your chevy trailblazer or gmc envoy's fuel injection computer.
